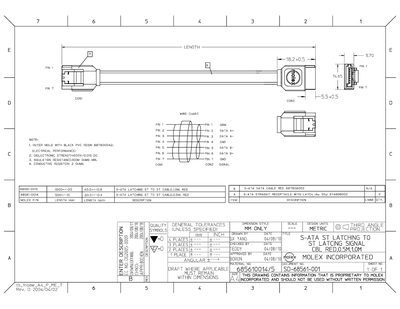

This data sheet describes the Molex 68561-0014 S-ATA latching cable, including its physical dimensions, material construction, and electrical characteristics. Pin assignments for the connector are listed with corresponding signal functions.
The document also specifies tolerances, dielectric strength, insulation resistance, and conductive resistor values, allowing designers to verify compatibility with S-ATA applications.
| Insulation Resistance (minimum) | 100 MΩ |
|---|---|
| Conductive Resistor | 2 Ω |
The insulation resistance is at least 100 MΩ.
The conductive resistor value is 2 Ω.
