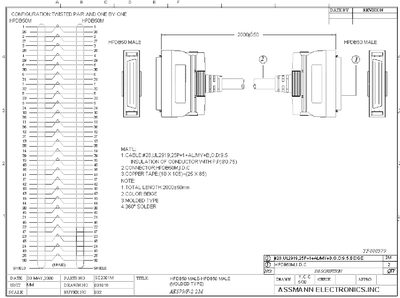

This document provides the parts list for the Assmann Electronics YF000379 cable assembly. It includes the twisted‑pair configuration, connector types, material composition, and overall dimensions.
Key details such as cable type, total length, color, and solder specifications are listed, allowing technicians and purchasers to verify the correct components for assembly or replacement.
| Cable | #23 UL2919 25P-H1 +ALMY+B,0.0:5.5 |
|---|---|
| Connector | HPDBSOM D.C |
| Copper Tape | 10 X 105)4+(25 % 85) |
| Total Length | 2000250imim |
| Color | Beige |
| Molded Type | |
| Solder | 360 |
The cable is specified as #23 UL2919 25P‑H1 with aluminum and a 0.0:5.5 insulation.
The document lists the total length as 2000250imim.
The cable is colored beige.
The male connector is identified as HPDBSOM D.C.
