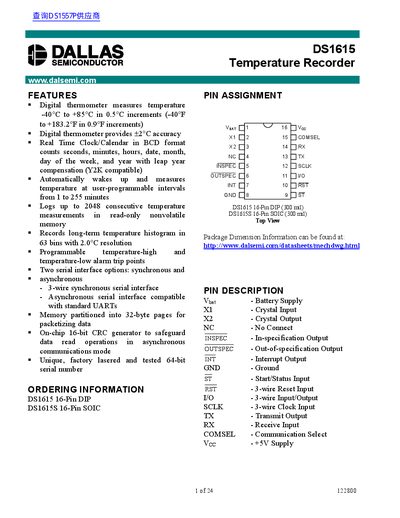

The DS1615 is a digital thermometer produced by DALSEMI, which can measure temperatures from -40°C to +85°C with an accuracy of ±2°C. The product has real-time clock/calendar, temperature recording and alarm functions, and can read and write data via serial interface.
The DS1615 is an integrated temperature recorder that combines a real‑time clock, data‑logging, and histogram capabilities. It measures temperatures from -40 °C to +85 °C in 0.5 °C steps with ±2 °C accuracy and can store up to 2,048 temperature samples.
The device offers two serial interfaces (synchronous 3‑wire and asynchronous UART), programmable high/low alarm thresholds, and a 63‑bin histogram with 2 °C resolution. Memory is organized into 32‑byte pages covering RTC, user NV RAM, alarm data, histogram, and datalog storage.
| Temperature range | -40 °C to +85 °C |
|---|---|
| Temperature resolution | 0.5 °C per step |
| Accuracy | ±2 °C |
| Histogram bins | 63 bins, 2 °C resolution |
| Programmable alarm thresholds | High and low temperature trip points |
| Supply voltage | +5 V |
| Serial interface options | Synchronous 3‑wire and asynchronous UART |
It measures temperatures from -40 °C to +85 °C.
There are 63 histogram bins, each covering a 2 °C temperature range.
It supports a synchronous 3‑wire interface and an asynchronous UART interface.
