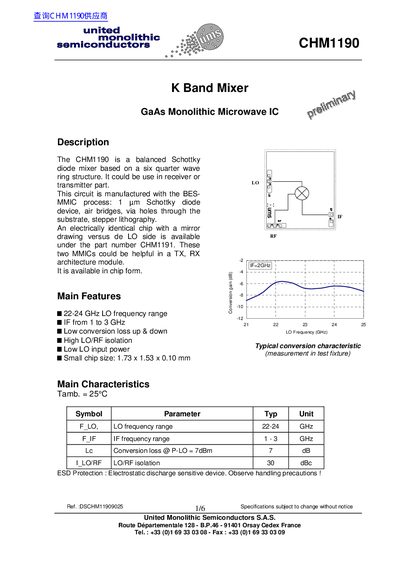

The CHM1190 is a balanced Schottky diode mixer based on a six quarter wave ring structure. It could be use in receiver or transmitter part. This circuit is manufactured with the BES- MMIC process: 1 µm Schottky diode device, air bridges, via holes through the substrate, stepper lithography. An electrically identical chip with a mirror drawing versus de LO side is available under the part number CHM1191. These two MMICs could be helpful in a TX, RX architecture module. It is available in chip form.
The CHM1190 is a balanced Schottky‑diode mixer built with a six‑quarter‑wave ring structure for use in receiver or transmitter modules. It operates over a 22‑24 GHz local‑oscillator range and provides an IF output from 1 to 3 GHz.
Key specifications include a typical conversion loss of 7 dB at 7 dBm LO power, 30 dBc LO/RF isolation, and a compact chip size of 1.73 mm × 1.53 mm × 0.10 mm. Ordering information and mechanical data are provided for integration into RF designs.
| LO frequency range | 22‑24 GHz |
|---|---|
| IF frequency range | 1‑3 GHz |
| Conversion loss | 7 dB @ 7 dBm LO |
| LO/RF isolation | 30 dBc |
| Chip size | 1.73 mm × 1.53 mm × 0.10 mm |
| Thickness | 0.10 mm |
| Maximum LO input power | 10 dBm (peak) |
| Maximum RF input power | 10 dBm (peak) |
The LO frequency range is 22 GHz to 24 GHz.
The typical conversion loss is 7 dB when the LO input power is 7 dBm.
Each port can tolerate a maximum peak input power of 10 dBm.
The chip measures 1.73 mm × 1.53 mm with a thickness of about 0.10 mm.
