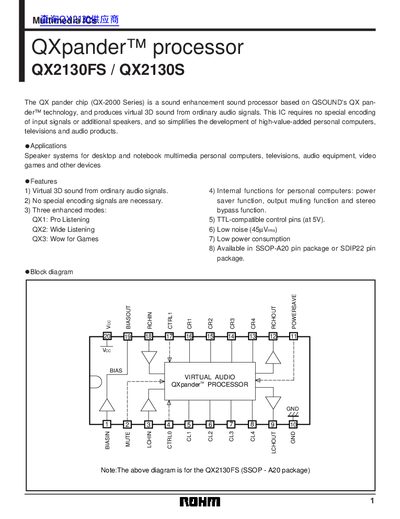

The QX pander chip (QX-2000 Series) is a sound enhancement sound processor based on QSOUND's QX pan- der™ technology, and produces virtual 3D sound from ordinary audio signals.
The QX2130FS and QX2130S are QXpander™ multimedia ICs that add virtual 3D sound to ordinary audio signals without special encoding or extra speakers. They are intended for use in personal computers, televisions, audio equipment, and video‑game systems.
Key features include three listening modes (Pro Listening, Wide Listening, Wow for Games), power‑save and mute functions, TTL‑compatible control pins, low noise and low power consumption, and availability in SSOP‑A20 or SDIP22 packages. The datasheet lists absolute maximum ratings, recommended operating conditions, analog and digital characteristics, and control‑mode details.
| Power supply voltage (Voc) | 13 V |
|---|---|
| Supply current (QX mode) | Typ 3.0 mA |
| Distortion (QX1 mode) | Typ 0.04 % |
| Maximum output level | +0.5 dBV |
| Load resistance (Ri) | 10 kΩ |
| Package options | SSOP‑A20 or SDIP22 |
The chip provides three modes: QX1 Pro Listening, QX2 Wide Listening, and QX3 Wow for Games.
The recommended operating power supply voltage is 12.5 V (typical).
It is offered in an SSOP‑A20 pin package or an SDIP22 pin package.
The maximum output level is +0.5 dBV.
