BH1603FVC is an analog output ambient light sensor IC launched by ON Semiconductor.
The BH1603FVC is an analog current‑output ambient light sensor designed for back‑light control in mobile phones, LCD TVs, laptops, and other devices. It offers a compact 3.0 × 1.6 mm surface‑mount package, spectral sensitivity close to the human eye, and a built‑in shutdown function.

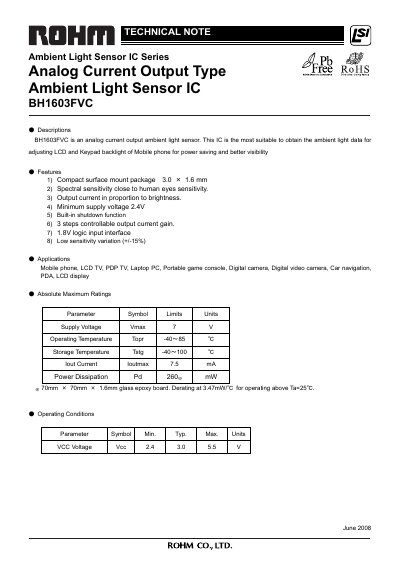

The document lists absolute maximum ratings, operating conditions, electrical characteristics, block diagrams, terminal definitions, and cautions for safe use. It also includes application notes such as gain‑mode selection, output voltage calculations, and recommended external components.
| Package dimensions | 0.3 mm × 0.7 mm × 1.6 mm |
|---|---|
| Gain modes | 3 (H‑Gain, M‑Gain, L‑Gain) |
| Shutdown function | Built‑in |
It provides three gain modes: H‑Gain, M‑Gain, and L‑Gain.
The package measures approximately 0.3 mm × 0.7 mm × 1.6 mm.
