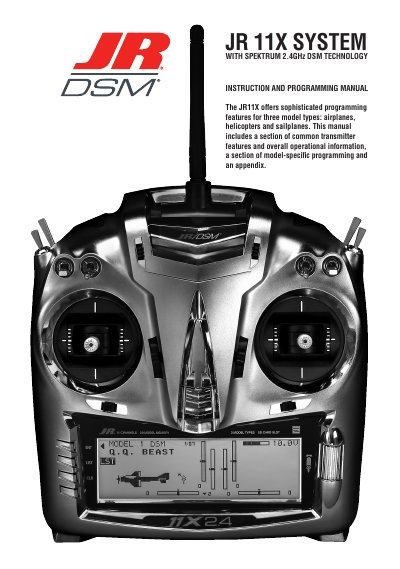

The JR 11X system is an advanced remote control with Spektrum 2.4GHz DSM technology, suitable for airplanes, helicopters and sailplanes. This manual includes common transmitter features and overall operational information, model-specific programming, and an appendix.
This manual covers the JR 11X transmitter’s features, including a backlit screen, digital trims, dual ball bearings, and integrated Spektrum DSM technology. It explains model‑specific programming for airplanes, helicopters, and sailplanes, as well as common functions such as ModelMatch, ServoSync, and advanced digital trims.
Safety warnings, charging procedures, receiver installation, power‑system requirements, binding steps, and failsafe options (SmartSafe and Preset) are detailed, along with a comprehensive appendix of specifications and troubleshooting tips.
| Model Number | 11X 2.4, JRP1100 |
|---|---|
| Number of Channels (Transmitter) | 11 |
| Modulation Type | DSM2/DSM1 |
| Frequency Band | 2.400–2.483 GHz |
| Transmitter Current (DSM2) | 180 mA |
| Transmitter Current (DSM1) | 280 mA |
| Resolution | 2048 |
| Number of Channels (Receiver) | 9 |
| Receiver Modulation | DSM2 |
| Receiver Dimensions | 1.23 × 1.94 × 0.56 in |
| Receiver Weight (Main) | 0.6 oz (15 g) |
| Receiver Voltage Range | 3.5 V to 10 V |
Connect the JR charger to the transmitter’s charging jack, ensuring the center pin is negative, and charge for 10–12 hours for a fully discharged battery.
The receiver provides two failsafe types: SmartSafe, which activates automatically during binding and signal loss, and Preset failsafe, which can be set manually.
ModelMatch prevents the model from operating if the transmitter is set to a different model memory than the one stored in the receiver during binding.
