This document describes the features and characteristics of the JR13WRA-10P supplier.

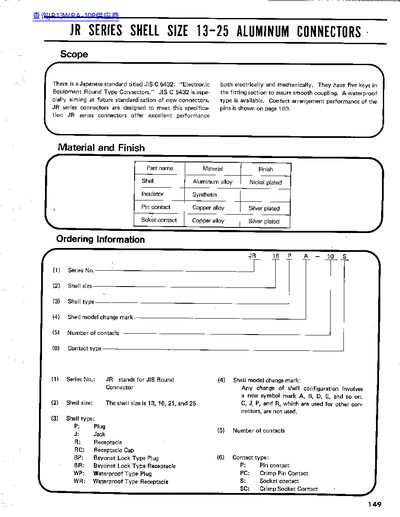

The JR series connectors are designed to meet the Japanese standard JIS C 5432 for round type connectors. They are offered in shell sizes 13, 16, 21 and 25 with various plug, receptacle, jack and crimp types. Materials include an aluminum alloy shell with nickel plating, synthetic insulators, and copper‑alloy contacts that are silver‑plated.
The document provides ordering information, part numbers, contact arrangements, torque specifications for assembly, and detailed electrical characteristics such as withstanding voltage, current rating, insulation resistance, contact resistance and solder cup dimensions.
