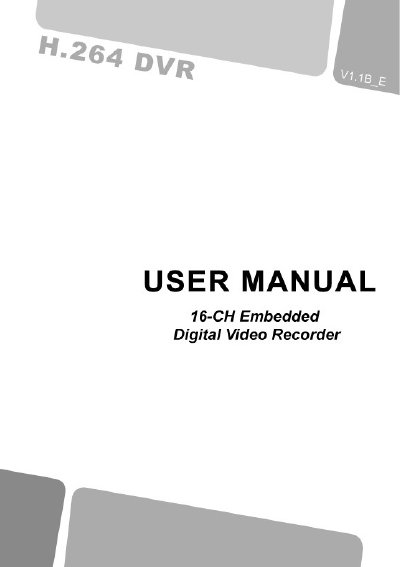

This manual details the functions, features, installation, use, maintenance methods of 1 4/8-channel Embedded Digital Video Recorder 16-channel H.264 DVR.
This manual provides complete instructions for the consumer‑oriented 16‑channel H.264 digital video recorder. It describes the hardware layout, packaging contents, main features and the front and back panel interfaces.
The guide includes quick installation steps, detailed configuration of recording modes, network and remote access, client software usage, and a comprehensive Q&A appendix that addresses common issues such as password recovery, video output problems, and hard‑disk detection.
| Operating system | Embedded LINUX |
|---|---|
| Video compression | H.264 |
| Video input/output | 16/1 channel BNC |
| Audio input/output | 2/1 channel BNC |
| Alarm input/output | 8CH input, 1CH output |
| Display split | 1/4/9/16 channels |
| Recording frame rate | PAL 25fps, NTSC 30fps (adjustable) |
| Recording resolution | CIF (352×288) |
| Power adapter | DC12V/5A or 12V/3A |
| Working temperature | -20 °C to 60 °C |
| Working humidity | 10 % – 90 % |
| Dimensions (W×D×H) | 354 mm × 230 mm × 45 mm |
Contact the vendor or manufacturer’s technicians for password recovery.
Check that the video output port is connected to the VIDEO OUT BNC, verify the cable condition and ensure the N/P system selection is correct.
