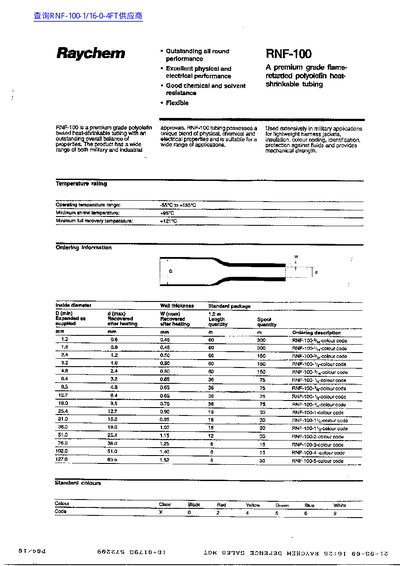

RNF-100 is a premium‑grade flame‑retarded polyolefin heat‑shrinkable tubing offering a balanced set of physical, chemical and electrical properties. It is widely used in military and industrial applications for lightweight harnesses, insulation, colour‑coding, and protection against fluids while providing mechanical strength.
The document also includes data for related products RP‑4800 and RT‑375, detailing their features, approvals, and size ranges. Ordering tables list inside diameters, wall thicknesses, and colour codes for each tubing variant.
| Operating temperature range | 55°C to +135°C |
|---|---|
| Minimum shrink temperature | +95°C |
| Minimum full recovery temperature | +121°C |
| Tensile strength | 7 MPa (min) |
| Ultimate elongation | 200 % (min) |
| Standard colours | Clear, Black, Red, Yellow, Green, Blue, White |
RNF-100 operates from 55 °C up to +135 °C.
The standard colours are Clear, Black, Red, Yellow, Green, Blue, and White.
RNF-100 is approved under UL File 35586, CSA, MIL‑DTL‑29055/5, VG 95343, and VDE 0341.
The minimum shrink temperature is +95 °C.
