FCLab FC-1000/FC-1001 USB2.0 Camera Development Kit User Manual

FCLab USB2 Camera User Manual, introducing the connection, use, installation and other information of the camera

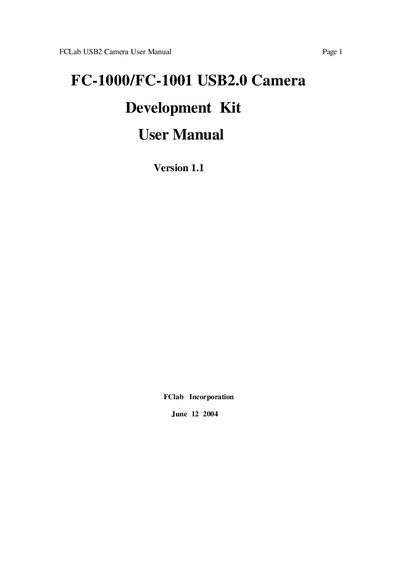

FCLab FC-1000/FC-1001 USB2.0 Camera Development Kit User Manual - cover page
Brand
FC-1000/FC-1001
Document type
User Manual
Language
English
Pages
11
File format
PDF
File size
391 KB
Published
01 June, 2012
Updated
30 September, 2023
MD5 checksum
F5DF1B9D58AEEAEF593A6BBD12B5712C
PDF
FCLab FC-1000/FC-1001 USB2.0 Camera Development Kit User Manual PDF

About this manual

The Development Kit includes the FC-1000 or FC-1001 USB2.0 camera module, a bundled software disc, SDK manual, and an optional 8‑pin extension connector. The kit requires a PC with at least a Pentium III 800 MHz processor, 128 MB RAM, a USB 2.0 port, and Windows 2000/XP. Installation steps cover driver and application setup, followed by hardware connection and hot‑plug operation.

The software offers live preview, auto‑white‑balance, exposure control, gain adjustment, and image capture up to 1280 × 1024 pixels at 10–60 fps. The camera provides a red power LED, a green data LED, and an optional 8‑pin GPIO/I²C/RS‑232 interface for custom applications, all powered via the USB bus.

What's inside

  • Installation
  • Package Contents
  • Host PC Requirements
  • Software Installation
  • Hardware Installation
  • Getting Started
  • Camera Features
  • LED Indicators
  • Extend Port and GPIO
  • Application User Guide

Specifications

USB InterfaceUSB 2.0 Hi‑Speed
Power SupplyUp to 500 mA from USB
Image Resolution1280 × 1024 pixels
Frame Rate10–60 fps
Processor48 MHz microprocessor
GPIO CapabilityUp to 20 configurable GPIO bits
Download PDF (391 KB)
