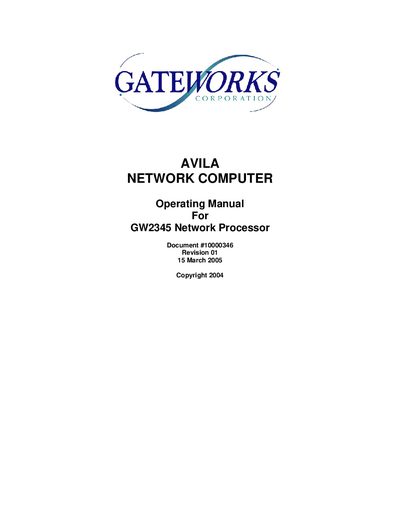

This document is the operating manual for AVILA NETWORK COMPUTER GW2345 Network Processor, providing information on product description, standard features, ordering options, and functional blocks.
The GW2345 is a single‑board network processor from Gateworks, featuring an Intel® XScale® IXP42x CPU, up to 128 Mbytes SDRAM, multiple Mini‑PCI slots, and Ethernet interfaces. This manual describes the hardware, installation procedures, and software support options.
Key sections cover functional block diagrams, detailed component specifications, configuration and installation guidance, and customer support resources such as warranty and repair information.
| CPU | Intel® XScale® IXP42x up to 533 MHz |
|---|---|
| SDRAM | Up to 128 Mbytes |
| Flash Memory | Up to 32 Mbytes |
| WAN Interface | 10/100 Base‑TX Ethernet |
| LAN Interface | 4‑port 10/100 Base‑TX |
| USB | Type B USB 1.1 device |
| Digital I/O | 5 general‑purpose bits |
| Voltage & Temperature Monitor | Integrated monitoring |
| Input Voltage Range | 6 VDC – 28 VDC |
| Typical Power Consumption | 3 W |
| Operating Temperature | 0 °C – 70 °C |
| Warranty | 1 year |
The GW2345 supports the Intel® IXP420, IXP422 and IXP425 processors.
The board accepts an input voltage from a minimum of 6 VDC up to a maximum of 28 VDC.
Standard hardware warranty period is one year from the date of purchase.
