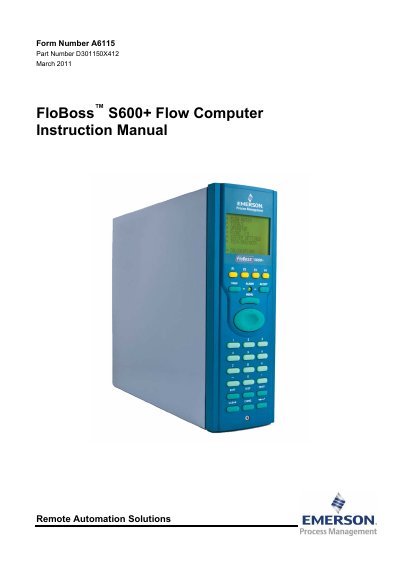

This manual describes the function and use of the FloBoss S600+ flow computer.
The FloBoss S600+ Flow Computer is a panel‑mount device designed for accurate measurement of hydrocarbon liquids and gases. It supports a wide range of meter types and offers flexible I/O configurations for multi‑stream applications.
This manual provides detailed guidance on installation, CPU and I/O module setup, front‑panel operation, web‑server access, startup procedures, and troubleshooting, along with a glossary and appendix for quick reference.
| LAN ports | 2 |
|---|---|
| RS‑232 serial ports | 2 configurable |
| RS‑422/RS‑485 serial ports | 3 (plus up to 4 RS‑485 2‑wire ports) |
| Supported flow‑meter types | Orifice, ultrasonic, turbine, positive displacement, Coriolis, Annubar, V‑Cone |
| Maximum I/O modules | 3 modules (up to 6 dual‑pulsed or 10 single‑pulsed streams) |
The S600+ provides two LAN ports on the enhanced CPU module for 10Base‑T or 100Base‑T full‑duplex connectivity.
It can measure orifice, ultrasonic, turbine, positive displacement, Coriolis, Annubar, and V‑Cone flow meters.
