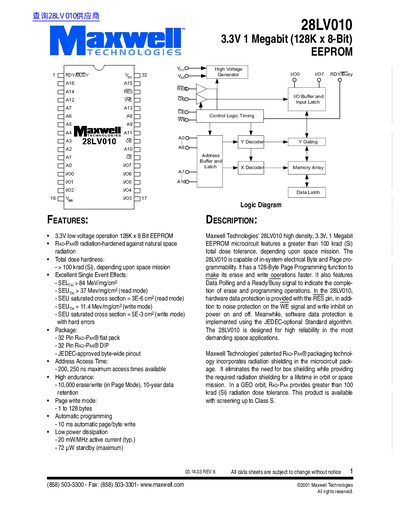

This data sheet introduces the Maxwell Technologies 28LV010 EEPROM's characteristics, including voltage, package, single dose, SEU, address access time, high endurance, page write mode, automatic programming, and low power dissipation.
The Maxwell 28LV010 is a 3.3 V, 1 Megabit EEPROM designed for space‑grade applications. It offers radiation tolerance greater than 100 krad (Si), automatic page programming, data polling, and a Ready/Busy signal for reliable operation.
The device is available in Rap‑Pak® flat‑pack and DIP packages, provides up to 10,000 erase/write cycles with 10‑year data retention, and features low active (20 mW/MHz) and standby (72 pW) power consumption. Recommended operating conditions include a supply voltage of 3.0‑3.6 V and an ambient temperature range of –55 °C to +125 °C.
| Supply Voltage | 3.0 V – 3.6 V |
|---|---|
| Input Voltage | 0.3 V – 0.8 V |
| Operating Temperature Range | -55 °C to +125 °C |
| Address Access Time | 200 ns – 250 ns |
| Endurance | 10,000 erase/write cycles, 10‑year data retention |
| Active Power Dissipation | 20 mW/MHz (typ.) |
| Standby Power | 72 pW (maximum) |
| Radiation Hardness | > 100 krad (Si) total dose |
It tolerates more than 100 krad (Si) total dose, depending on the space mission.
The standby current is 72 pW (maximum).
The recommended supply voltage is 3.0 V to 3.6 V.
It operates from –55 °C up to +125 °C.
