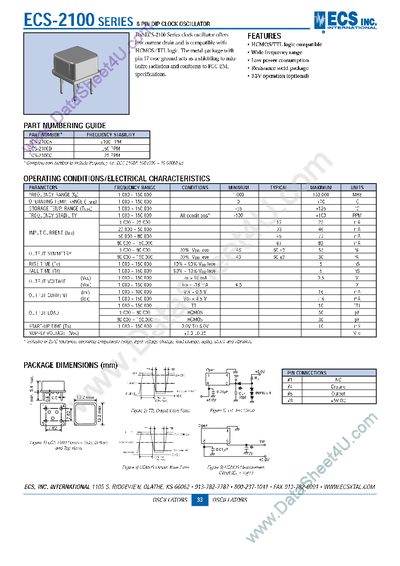

The ECS-2100 series is an 8‑pin DIP clock oscillator offering low power consumption and HCMOS/TTL logic compatibility. The guide lists part numbers, frequency stability values and the wide frequency range supported by the device.
Key electrical characteristics such as frequency range, supply voltage, operating temperature and input current are detailed, along with package dimensions and pin connections for easy integration into designs.
| Frequency range | 1.000 – 150.000 MHz |
|---|---|
| Supply voltage (Voc) | +5.0 – 20.25 V |
| Frequency stability (ECS-2100B) | +50 PPM |
The oscillator covers a frequency range from 1.000 MHz to 150.000 MHz.
It operates from a supply voltage of +5.0 V up to 20.25 V.
The ECS-2100B version provides a frequency stability of +50 PPM.
