DTDG14GP is a ROHM NPN digital transistor with a maximum collector-emitter voltage of 60V, a maximum collector current of 1A, and a collector-emitter saturation voltage of 0.4V. It features high hFE and low saturation voltage and is suitable for switch power supplies, driver circuits, and other applications.

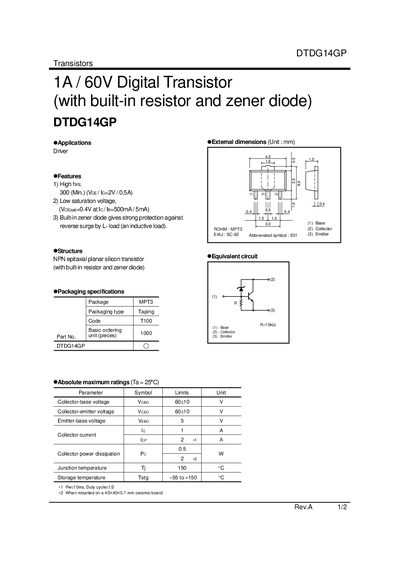

The DTDG14GP is a 1 A, 60 V digital NPN transistor that incorporates a built‑in resistor and a zener diode for strong reverse‑surge protection. It is offered in an MPT3 (SC‑62) surface‑mount package and is intended for driver applications.
The document provides detailed electrical characteristics, maximum ratings, packaging information, and example application circuits, along with legal notices from Rohm.
| Collector power dissipation (Pc) | 2 W |
|---|---|
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 °C to +150 °C |
| Transition frequency (fT) | 80 MHz |
It gives strong protection against reverse surge caused by inductive loads.
The device is supplied in an MPT3 (SC‑62) surface‑mount package.
