Kawa KA-2003 VoIP Phone User Manual

This is a user's manual for VoIP Phone

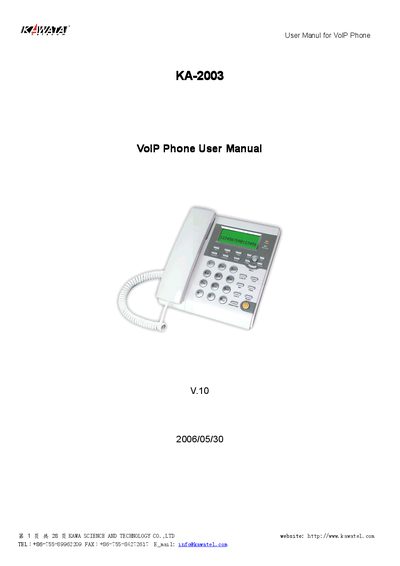

Kawa KA-2003 VoIP Phone User Manual - cover page
Brand
KA-2003
Document type
User Manual
Language
English
Pages
28
File format
PDF
File size
1 MB
Published
01 June, 2012
Updated
30 September, 2023
MD5 checksum
87B69D6B4C702A88E6AA3E560D5E991E
PDF
Kawa KA-2003 VoIP Phone User Manual PDF

About this manual

The manual begins with a hardware overview, describing the two RJ‑45 networking ports, LED indicators, and the keypad layout with its various functions such as dialing, hold, mute, and three‑way conference. It also details the supported audio codecs and DTMF options.

Later sections cover software configuration through the web browser, including WAN/LAN settings, SIP server realms, NAT traversal, and firmware updates. Instructions for saving changes, restoring factory defaults, and rebooting the device are also included.

What's inside

  • Introduction
  • Hardware Overview
  • Software Overview
  • Keypad Interface
  • Web Browser Configuration
  • Network Settings
  • SIP Settings
  • Firmware Update
  • Factory Reset
  • Reboot

Specifications

Network interfacesTwo RJ‑45 ports supporting 10/100 Mbps Fast Ethernet
Keypad volume range0–15 (max.)
SIP protocol versionsRFC2543 and RFC3261
LED indicatorsVarious LEDs for speakerphone, register, etc.
Download PDF (1 MB)
