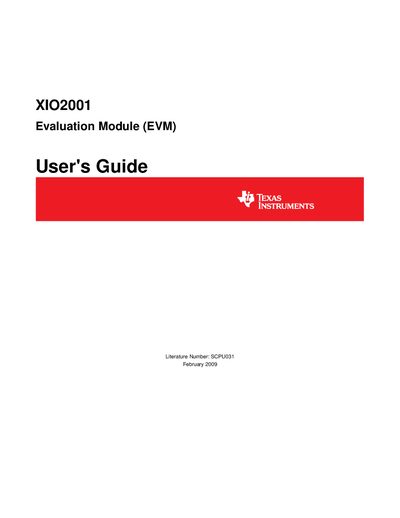

This document is the User's Guide for the XIO2001 Evaluation Module (EVM), providing information on the features and functionality of the evaluation module.
The X102001 Evaluation Module is a half‑width PCI Express add‑in card that bridges PCI Express to a standard PCI bus. It supplies the usual PCI voltages (3.3 V, 5 V, 12 V, -12 V) and includes three PCI add‑in slots for testing cards.
This guide describes how to use the module, its connector specifications, LED indicators, EEPROM and JTAG interfaces, and includes a FAQ, schematics, and a bill of materials for engineering development.
| Power rails | 3.3 V, 5 V, 12 V, -12 V |
|---|---|
| PCI add‑in slots | 3 standard slots |
The module provides three standard PCI add‑in slots.
