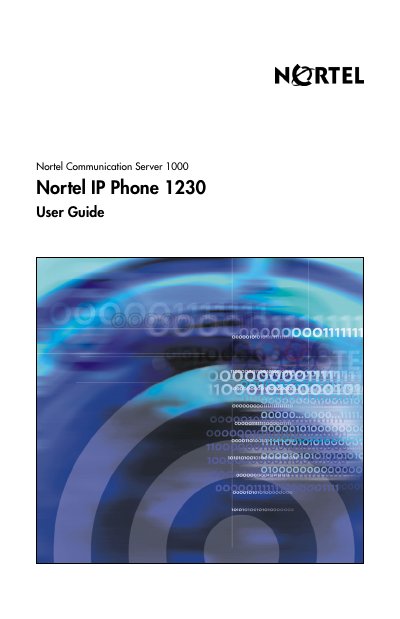

This document introduces the features and characteristics of the Nortel Communication Server 1000 Nortel IP Phone 1230
This guide explains how to install, configure, and use the Nortel IP Phone 1230 with the Communication Server 1000. It covers hardware connections, power options, feature key programming, and advanced functions such as Virtual Office and electronic lock configuration.
The manual also includes safety and regulatory information, a detailed description of the phone’s display and keys, call handling procedures, and a troubleshooting section to help resolve common issues.
| Context‑sensitive soft keys | Four |
|---|---|
| Specialized fixed keys | Six |
| Call‑processing fixed keys | Six |
| Display | LCD screen |
| Speakerphone quality | High‑quality |
| Programmable feature keys | 20 (10 user‑defined) |
| Ethernet ports | Two 10/100 ports (LAN and optional PC) |
| Power options | Power over Ethernet (PoE) or AC adapter |
| Accessory Expansion Module (AEM) port | Present |
| Hearing aid compatibility | Supported |
Connect an Ethernet cable to the LAN port; a second Ethernet port can be used for an optional PC connection.
The phone can be powered via Power over Ethernet (PoE) or by a supported AC adapter.
The phone provides 20 programmable feature keys, of which ten can be assigned user‑defined labels.
Yes, the IP Phone 1230 is wall‑mountable.
