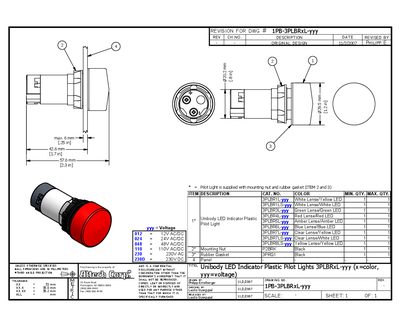

This is a design drawing of Unibody LED Indicator Plastic Pilot Light
This document provides the revision drawing and specification details for the Altech 1PB-3PLBRxL-yyy plastic pilot light series. It lists the available voltage configurations, color and LED combinations, and the mechanical dimensions of each variant.
A full parts list with item numbers, minimum and maximum order quantities, as well as tolerance data and contact information for Altech Corp, is included. All dimensions are given in millimetres and follow third‑angle projection standards.
| Voltage options | 12V AC/DC, 24V AC/DC, 48V AC/DC, 110V AC/DC, 230V AC, 230V DC |
|---|---|
| Dimensions unit | millimetres |
| Tolerance values | XX = 41mm, XX = +0.5 mm, XXKK = 40.2 mm, ALL = -mm |
The indicator can be supplied for 12V AC/DC, 24V AC/DC, 48V AC/DC, 110V AC/DC, 230V AC, or 230V DC.
