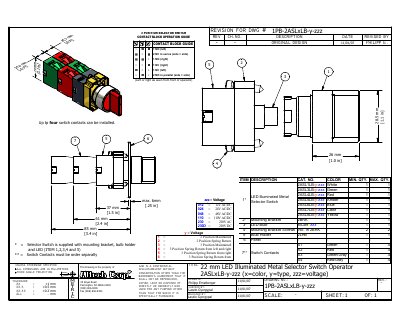

This document is a parts list for 2ASL1LB-y-zzz,2ASL3LB-y-zzz,2ASL4LB-y-zzz,2ASL5LB-y-zzz,2ASL6LB-y-zzz,2ASL7LB-y-zzz,2ASL8LB-y-zzz
The document provides a detailed item description for the 22 mm LED illuminated metal selector switch operator, including part numbers, color options, and minimum/maximum order quantities. It also lists the required mounting hardware, LED bulb, bulb holder, and panel accessories.
Technical details such as voltage codes, switch position types, contact configurations, and dimensional tolerances are included, along with a contact block operation guide and wiring symbols.
| Switch size | 22 mm |
|---|---|
| Voltage codes | 012 = 12V AC/DC, 024 = 24V AC/DC, 048 = 48V AC/DC, 110 = 110V AC/DC, 230 = 230V AC, 230D = 230V DC |
| Dimensions (max tolerances) | ±1 mm, ±0.5 mm, ±0.2 mm |
It specifies the voltage rating of the switch (e.g., 012 = 12 V AC/DC).
White, Green, Red, Amber, Blue, Clear, and Yellow.
