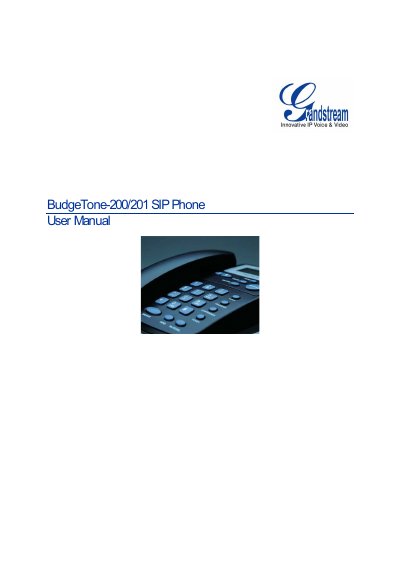

This document is the user manual for BudgeTone-200/201 SIP Phone User Manual, which introduces the features and characteristics of the product, including connection methods, usage methods, configuration methods, etc.
This manual covers the Grandstream BudgeTone-200/201 SIP phone, describing its hardware features, safety compliance, and warranty information. It guides users through unpacking, connecting power, LAN, and headset, and explains the phone’s LCD and keypad functions.
Key sections include installation steps, configuration via keypad or web browser, firmware upgrades using TFTP/HTTP, and procedures for saving settings, rebooting, and restoring factory defaults. The document also lists technical specifications such as Ethernet ports, power requirements, and dimensions.
| Ethernet ports | Two 10/100 Mbps Full/Half Duplex Ethernet Switch |
|---|---|
| Power adaptor output | +5 VDC, 1200 mA |
| Dimensions | 220 mm × 180 mm × 65 mm |
| Weight | 0.9 kg (21 lb) |
Firmware upgrades are performed via TFTP or HTTP using either the keypad menu or the web configuration interface.
Press the MENU button, select the reset option, enter the MAC address as instructed, and confirm to reboot the device.
The phone meets FCC, CE, and UL safety standards.
