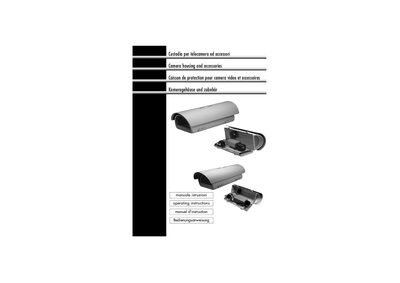

This document is an operating instructions for a camera housing and accessories. The operating instructions include the features and characteristics of the product.
The MALANG camera housing is a waterproof enclosure made of high‑resistance technopolymer, offering side opening for easy access to the camera, optics and connections. It supports 1/2", 1/3" and 1/4" cameras and can be fitted with sunshield, heater, blower and power‑supply kits.
The manual explains how to open the housing, install the camera, connect optional heater or blower kits, and select the appropriate power supply. Technical data such as dimensions, weight, IP66 rating and operating temperature are provided for both the 420 mm and 360 mm versions.
| External dimensions (420 mm version) | 156 × 100 × 422 mm |
|---|---|
| Weight (420 mm version) | 1.2 kg |
| Material | high‑resistance technopolymer |
| IP protection rating | IP66 |
| Operating temperature range | -20 °C to +50 °C |
| Heater kit power supply | 12‑24 VAC/VDC, 20 W (or 110‑240 VAC, 40 W) |
| Blower kit power supply | 12 VDC, 1 W (or 24 VDC, 1.2 W) |
Loosen the two side screws, then turn the cover and the upper half of the body about the opening hinge axis.
The heater kit can be powered with 12‑24 VAC/VDC (20 W) or with 110‑240 VAC (40 W).
The housing meets the IP66 weatherproof standard.
156 mm × 100 mm × 422 mm.
