3 x 1/1.8” CCD progressive scan RGB color camera for vision applications.

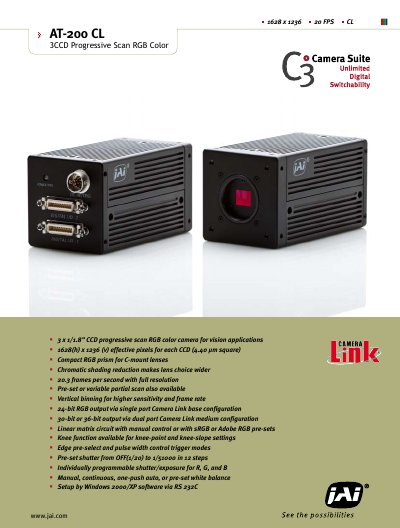

The AT-200 CL is a 3‑CCD progressive‑scan RGB color camera designed for machine‑vision applications. It features a 1/1.8" sensor with 1628 × 1236 effective pixels per CCD, 4.40 µm square pixel size, and delivers up to 20.31 fps at full resolution via a Camera Link base configuration. The camera supports multiple read‑out modes, programmable exposure, white‑balance, and offers both 8‑bit and up to 12‑bit RGB output.
Physical specifications include a compact C‑mount design (55 mm × 55 mm × 98.3 mm, 320 g), power consumption of 6.8 W at 12 V, and operation from –5 °C to +45 °C. The device provides a range of trigger and I/O options through a 26‑pin Hirose connector and complies with CE, FCC, and RoHS regulations. This manual is written in Chinese.
| Sensor type | 3CCD progressive scan |
|---|---|
| Effective pixels per CCD | 1628 × 1236 |
| Pixel size | 4.40 µm square |
| Full‑frame rate | 20.31 fps |
| Power consumption | 6.8 W typical (full frame @ 12 V) |
| Power supply | 12 V to 24 V DC ±10 % |
| Dimensions (H × W × L) | 55 mm × 55 mm × 98.3 mm |
| Weight | 320 g |
| Lens mount | C‑mount (max 4.0 mm thread) |
| Operating temperature | -5 °C to +45 °C |
The camera can capture up to 20.31 frames per second at full resolution.
It operates from a 12 V to 24 V DC supply with a tolerance of ±10 %.
The camera uses a C‑mount lens interface (maximum 4.0 mm thread).
It can operate between –5 °C and +45 °C.
