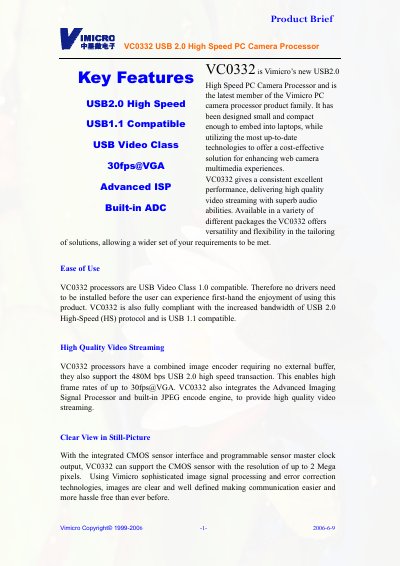

VC0332 is Vimicro’s new USB2.0 High Speed PC Camera Processor and is the latest member of the Vimicro PC camera processor product family. It has been designed small and compact enough to embed into laptops, while utilizing the most up-to-date technologies to offer a cost-effective solution for enhancing web camera multimedia experiences. VC0332 gives a consistent excellent performance, delivering high quality video streaming with superb audio abilities. Available in a variety of different packages the VC0332 offers versatility and flexibility in the tailoring of solutions, allowing a wider set of your requirements to be met.
The VC0332 USB 2.0 High Speed PC Camera Processor is a small, USB‑compatible chip designed for laptops and other embedded systems. It supports USB Video Class 1.0, delivering up to 30 fps at VGA resolution and up to 2 Mega‑pixel sensor input, with a built‑in JPEG encoder and no external buffer required.
In addition to video, the processor includes a 1‑channel 16‑bit sigma‑delta ADC, echo and noise cancellation, and full compliance with USB Audio Class 1.0, making it suitable for voice recording and online communication. Vimicro provides worldwide sales support and further details on its website.
| USB Interface | USB 2.0 High‑Speed (HS) protocol |
|---|---|
| Video Frame Rate | up to 30 fps @ VGA |
| Supported Sensor Resolution | up to 2 Mega‑pixels |
| Audio ADC | 1‑channel 16‑bit sigma‑delta ADC |
| Audio Standard Compliance | USB Audio Class 1.0 |
| Video Standard Compatibility | USB Video Class 1.0 compatible |
| Image Encoder | Built‑in JPEG encode engine |
No, it is USB Video Class 1.0 compatible and works without driver installation.
It supports up to VGA resolution at 30 fps.
Yes, it includes a 1‑channel 16‑bit sigma‑delta ADC and built‑in echo and noise cancellation.
