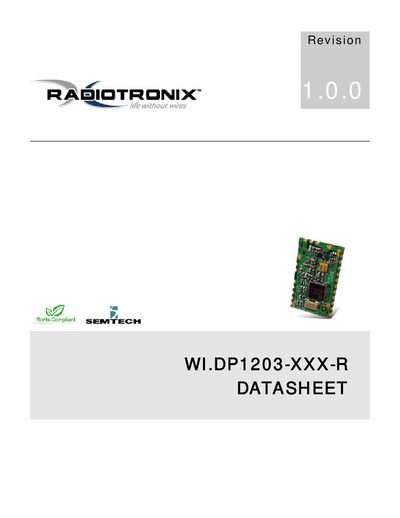

This document is the datasheet of DP1203-XXX-R, which provides detailed information about the product features, application information, electrical specifications, functional description, operation modes, serial control interface, typical application, mechanical dimensions, and custom applications.
The Wi.DP1203-XXX-R™ modules are complete radio transceiver modules operating in the 433, 868 and 915 MHz ISM frequency bands. They are suited for process, access, building controls, home automation and other applications requiring high‑speed wireless communication.
The datasheet lists key specifications such as supply voltage, output power, data rate, and temperature ranges, and includes pin‑out diagrams, functional descriptions, mechanical dimensions, and ordering information for the 433 MHz, 868 MHz and 915 MHz variants.
| Frequency bands | 433 MHz, 868 MHz, 915 MHz |
|---|---|
| Supply voltage | 2.4 V‑3.6 V DC |
| Output power | Programmable up to 15 dBm |
| Data rate | Up to 152.3 kbit/s |
| Operating temperature | -40 °C to +85 °C |
It operates in the 433 MHz, 868 MHz and 915 MHz ISM bands.
The module requires a supply voltage between 2.4 V and 3.6 V DC.
The output power is programmable up to 15 dBm.
The device operates from –40 °C to +85 °C.
