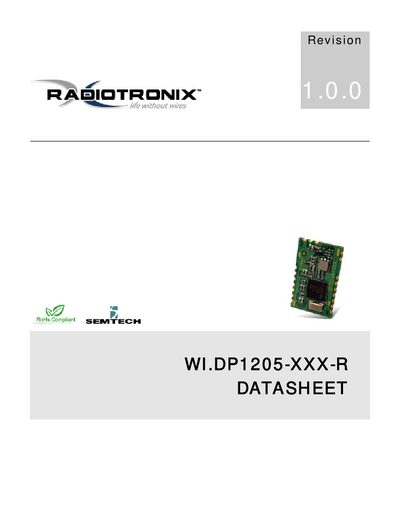

This document is a datasheet for WI.DP1205-XXX-R, describing the features and applications of the product.
The Radiotronix WI.DP1205-XXX-R is a complete radio transceiver module designed for the 433 MHz, 868 MHz and 915 MHz ISM bands. It offers both narrow‑band and wide‑band communication, high output power, and excellent receiver sensitivity, meeting ETSI and FCC regulatory standards.
The datasheet provides detailed electrical specifications, pin‑out diagrams, mechanical dimensions, typical applications, and ordering information, along with contact details for technical and sales support.
| Operating frequency bands | 433 MHz, 868 MHz, 915 MHz |
|---|---|
| Supply voltage | 2.4 V – 3.6 V |
| Output power (max) | 15 dBm |
| Receiver sensitivity | -113 dBm at 4.8 kbps |
| Current consumption (Tx) | 62 mA @ 15 dBm |
| Current consumption (Rx) | 14 mA |
| FIFO size | 16 bytes |
| Module dimensions | 30.5 mm × 18.5 mm |
| Frequency synthesizer step | 500 Hz |
| Data rate | up to 152.3 kbit/s |
It operates in the 433 MHz, 868 MHz and 915 MHz ISM bands.
The module works with a supply voltage between 2.4 V and 3.6 V.
The output power is programmable up to 15 dBm.
The module includes a 16‑byte FIFO buffer.
