The document lists the information of LED lamps and LED lampholders. Products come in red, yellow and green colors, and two voltage options 2.0/2.2V and 12Vdc.

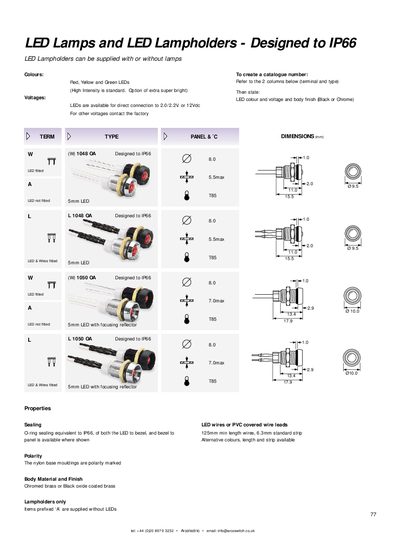

The leaflet outlines Arcolectric LED lamps and lampholders that are designed to IP66, offering options for LED colour, voltage (2.0 V, 2.2 V, 12 V) and body finish (black or chrome). It lists part numbers such as 1048 OA and 1050 OA, and notes that other voltages can be obtained by contacting the factory.
Sealing is achieved with IP66‑equivalent gaskets between LED and bezel and between bezel and wiring. The nylon base mouldings are polarity‑marked, and the bodies are made of chromed brass or black‑oxide coated brass. Items prefixed “A” are supplied without LEDs. Contact information is provided for further inquiries.
| IP rating | IP66 |
|---|---|
| LED voltage options | 2.0 V, 2.2 V, 12 V |
| Body finish | Chromed brass or black‑oxide coated brass |
| Polarity marking | Nylon base mouldings are polarity marked |
They are designed to meet an IP66 sealing standard.
LEDs can be connected directly to 2.0 V, 2.2 V, or 12 V; other voltages require contacting the factory.
The bodies are available in chromed brass or black‑oxide coated brass.
Call +44 (0)20 8979 3232 or email [email protected].
