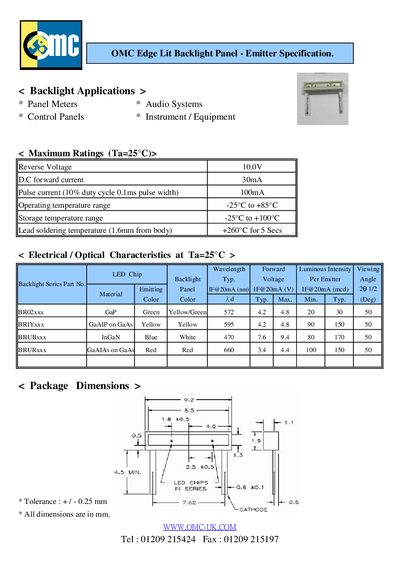

This document is a product specification for OMC edge lit backlights, which describes the features and performance parameters of backlights in different colors.
This document provides the technical specifications for OMC edge‑lit LED backlight panels. It includes maximum electrical ratings, optical performance data for different LED colours, and mechanical package dimensions.
The sheet also describes the range of backlight colours available (standard Yellow/Green, high‑brightness Yellow/Orange, Blue, and Red) and details bi‑colour options that combine green and red emitters for alarm or status indication on LCD displays.
| Reverse Voltage | 10.0 V |
|---|---|
| DC Forward Current | 30 mA |
| Pulse Current (10% duty, 0.1 ms) | 100 mA |
| Operating Temperature Range | -25 °C to +85 °C |
| Storage Temperature Range | -25 °C to +100 °C |
| Lead Soldering Temperature | +260 °C for 5 s |
The reverse voltage rating is 10.0 V.
They use two rows of LEDs, one edge with green emitters and the opposite edge with red emitters, allowing the panel to change colour.
