This document provides specifications and characteristics of a range of indicator lights, including dimensions, colors, and voltages.

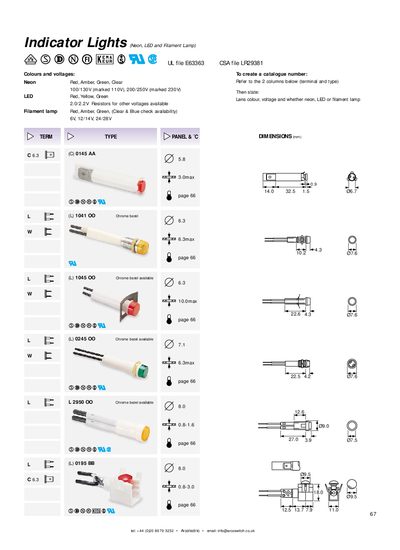

This handbook provides a quick reference for Arcolectric's indicator lights, covering neon, LED, and filament lamp types. It lists available lens colours, voltage ranges, and optional bezel finishes.
The document includes colour and voltage tables, dimension data, and instructions for creating catalogue numbers based on terminal and type information.
| Neon lamp colours | Red, Amber, Green, Clear |
|---|---|
| Neon lamp voltages | 100/130 V (marked 110 V), 200/250 V (marked 230 V) |
| LED lamp colours | Red, Yellow, Green |
| Filament lamp colours | Red, Amber, Green, (Clear & Blue check availability) |
| Filament lamp voltages | 6 V, 12/14 V, 24/28 V |
| Dimensions (mm) | 14.0 × 32.5 × 6.7 |
Red, Amber, Green, and Clear are listed for neon lamps.
Filament lamps are offered at 6 V, 12/14 V, and 24/28 V.
Refer to the two columns (terminal and type), then state lens colour, voltage and whether the lamp is neon, LED or filament.
The listed dimensions are 14.0 mm × 32.5 mm × 6.7 mm.
