This document introduces Arcolectric's IP67 sealed indicator lights, which come in a variety of colors, voltages and types, including LEDs, neon lights and bulbs. Product features include: IP67 sealing, gaskets/O-rings, multiple sizes, red, amber, green, clear and blue lenses, red, yellow, green, blue, and white LEDs.

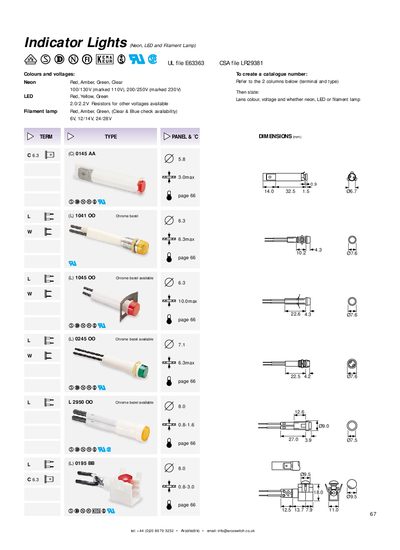

This one‑page handbook lists the available types of indicator lights (Neon, LED and filament lamp) together with their colour choices, voltage ratings and optional bezel finishes. It also provides basic dimensions and a method for creating catalogue numbers.
Contact information for Arcolectric is included, along with a reference to the CSA and UL file numbers for compliance verification.
| Neon colours | Red, Amber, Green, Clear |
|---|---|
| Neon voltage options | 100/130V (marked 110V), 200/250V (marked 230V) |
| LED colours | Red, Yellow, Green |
| Filament lamp colours | Red, Amber, Green |
| Resistor values for other voltages | 2.0 V / 2.2 V |
| Dimensions (mm) | 14.0 × 32.5 × 6.7 |
| Bezel finish | Chrome bezel |
Red, Amber, Green and Clear are offered for neon indicator lights.
Neon lights are rated for 100/130 V (marked 110 V) and 200/250 V (marked 230 V).
A chrome bezel is available for the indicator lights.
Use the terminal and type columns, then state the lens colour, voltage and whether it is neon, LED or filament lamp.
