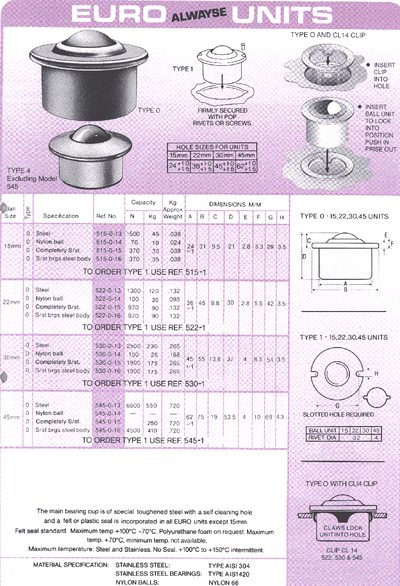

The document provides technical specifications for EURO Alwayse Units, including size options, material composition, and operating temperature ranges. It lists the available unit sizes (15 mm, 22 mm, 30 mm, 45 mm) and describes the construction of the main bearing cup and sealing options.
Key details cover material specifications such as stainless steel AISI 304 for the body, stainless steel bearings AISI 1420, and nylon 66 balls. Temperature limits are given for different configurations, with maximum temperatures ranging from +70 °C to +150 °C depending on the seal type and material.
| Available sizes | 15 mm, 22 mm, 30 mm, 45 mm |
|---|---|
| Body material | Stainless steel AISI 304 |
| Bearing material | Stainless steel AISI 1420 |
| Ball material | Nylon 66 |
| Maximum temperature (sealed units) | +100 °C to -70 °C |
| Maximum temperature (unsealed steel) | +100 °C to +150 °C intermittent |
The body is made of stainless steel grade AISI 304.
Sealed units can operate up to +100 °C and down to -70 °C.
Units are offered in 15 mm, 22 mm, 30 mm, and 45 mm diameters.
