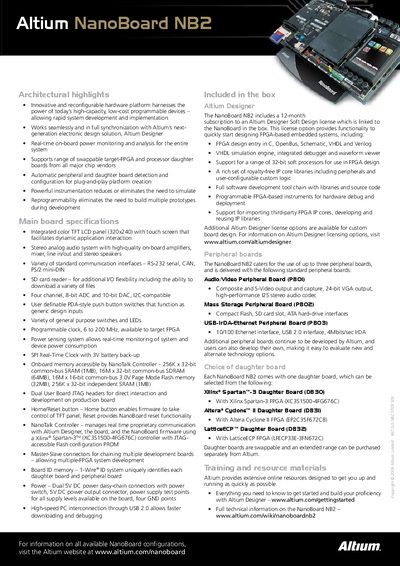

Altium NanoBoard NB2 is an innovative and reconfigurable hardware platform that harnesses the power of today's high-capacity, low-cost programmable devices, allowing rapid system development and implementation. It works seamlessly and in full synchronization with Altium's next-generation electronic design solution, Altium Designer. It features real-time on-board power monitoring and analysis for the entire system, and supports a range of swappable target-FPGA and processor daughter boards from all major chip vendors. Powerful instrumentation reduces or eliminates the need to simulate, while reprogrammability eliminates the need to build multiple prototypes during development.
The NanoBoard NB2 is an innovative, reconfigurable development platform that integrates a Xilinx Spartan‑3 FPGA, on‑board power monitoring, a 320×240 color TFT LCD with touch, stereo audio, and a variety of communication interfaces such as RS‑232, CAN, PS/2, USB 2.0 and Ethernet. It supports swappable target‑FPGA and processor daughter boards from major vendors and offers plug‑and‑play detection for rapid system development.
The board ships with a 12‑month Altium Designer license and includes standard peripheral boards for audio/video, mass storage, and Ethernet/IrDA. Users can add up to three peripheral boards and select from Xilinx, Altera or Lattice daughter boards, each providing its own FPGA resources. Extensive online resources and IP core libraries are available to accelerate design work.
| Display | 320×240 color TFT LCD with touch screen |
|---|---|
| ADC | 4‑channel, 8‑bit |
| DAC | 10‑bit |
| On‑board Memory | 1 MB SRAM, 64 MB SDRAM, 32 MB Flash |
| FPGA | Xilinx Spartan‑3 (XC3S1500‑4FG676C) |
| USB Interface | USB 2.0 high‑speed |
| Serial Interfaces | RS‑232, CAN, PS/2 mini‑DIN, Ethernet 10/100 |
| Power Supply | Dual 5 V DC daisy‑chain connectors with switch |
The NanoBoard NB2 uses a Xilinx Spartan‑3 FPGA (XC3S1500‑4FG676C).
The NanoBoard NB2 can support up to three peripheral boards.
A 12‑month Altium Designer Soft Design license is included with the NanoBoard NB2.
Yes, daughter boards from Xilinx, Altera and Lattice are swappable and additional boards can be purchased.
