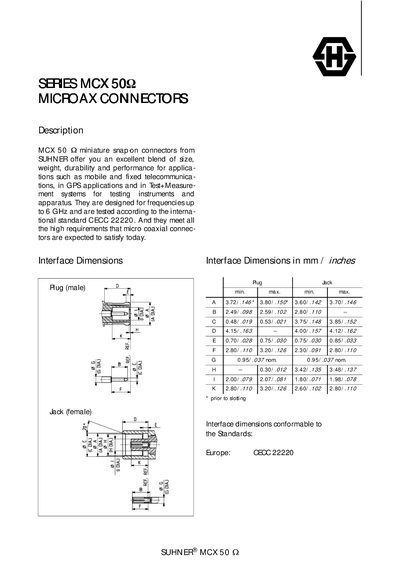

The MCX 50Ω miniature snap-on connectors from SUHNER offer an excellent blend of size, weight, durability, and performance for applications such as mobile and fixed telecommunications, GPS applications, and Test+Measurement systems. They are designed for frequencies up to 6 GHz and are tested according to the international standard CECC 22220. They meet all the high requirements that micro coaxial connectors are expected to satisfy today.
The MCX 50 series from Suhner are miniature snap‑on coaxial connectors designed for applications such as mobile and fixed telecommunications, GPS, and test‑and‑measurement equipment. They operate up to 6 GHz and comply with the international standard CECC 22220.
Key specifications include a 50 Ω impedance, a frequency range up to 6 GHz, dielectric withstanding voltage of 750 V rms, and a durability rating of 500 mating cycles. Environmental data cover a temperature range from –58 °C to +158 °C and various MIL‑STD‑202 tests for thermal shock, moisture, and vibration.
| Impedance | 50 Ω |
|---|---|
| Working voltage at sea level | 170 V rms (50 Hz) |
| Operating temperature range | –58 °C … +158 °C |
The MCX 50 connector has an impedance of 50 Ω.
It can be used from –58 °C to +158 °C.
