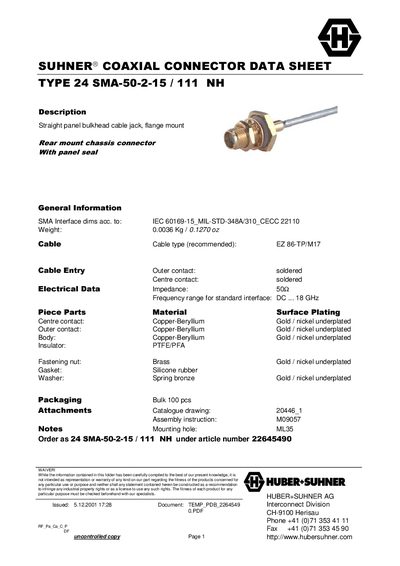

This document is an instruction about straight panel bulkhead cable jack, providing information on dimensions, weight, interface type, recommended cable type, and frequency range of the product.
The 24 SMA-50-2-15 / 111 NH is a straight panel bulkhead cable jack with a flange mount and rear‑mount chassis connector, designed for panel seal applications. It complies with IEC 60169‑15 and MIL‑STD‑348A standards.
Key specifications include a 502 Ω impedance, frequency range from DC to 18 GHz, and construction using copper‑beryllium contacts, PTFE/PFA insulator, and gold/nickel surface plating. The connector is supplied in bulk packaging of 100 pieces and includes assembly instructions (M09057).
| Frequency range | DC … 18 GHz |
|---|---|
| Weight | 0.0036 kg (0.1270 oz) |
| Centre contact material | Copper‑Beryllium |
| Surface plating | Gold / nickel underplated |
It operates from DC up to 18 GHz.
The centre contact is made of copper‑beryllium.
