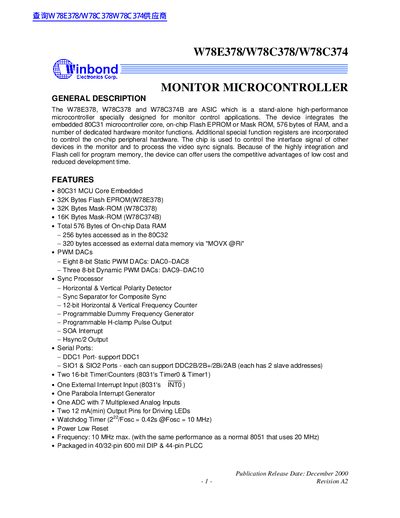

W78E378/W78C378/W78C374 is a stand-alone high-performance microcontroller specially designed for monitor control applications. The device integrates the embedded 80C31 microcontroller core, on-chip Flash EPROM or Mask ROM, 576 bytes of RAM, and a number of dedicated hardware monitor functions. Additional special function registers are incorporated to control the on-chip peripheral hardware. The chip is used to control the interface signal of other devices in the monitor and to process the video sync signals. Because of the highly integration and Flash cell for program memory, the device can offer users the competitive advantages of low cost and reduced development time.
The W78E378, W78C378 and W78C374 microcontrollers are ASIC devices designed for monitor control applications. They integrate an 80031 MCU core, on‑chip Flash EPROM or Mask ROM, 576 bytes of RAM, PWM DACs, ADC inputs and a range of dedicated monitor functions.
The datasheet provides pin configurations for 40‑pin DIP, 32‑pin DIP and 44‑pin PLCC packages, detailed pin descriptions, functional block diagrams, address space mapping, special‑function registers, and mechanical package dimensions.
