This is a document about Wiha Hex L-Keys products. These products are inch-sized hex keys, designed for inch-sized screws that are difficult to access. They feature chrome-vanadium steel blades that are through hardened and manganese-phosphated. The ballpoint design allows users to work at angles up to 25°. There is also a set of 13 hex keys in a ProStar holder, allowing easy removal of each key without moving others. The products meet the ASME B18.3-1998 standards.
The Wiha 369 series hex L‑keys feature a ballpoint tip that allows work at angles up to 25°, making them ideal for hard‑to‑reach inch‑sized screws. The keys are made from chrome‑vanadium steel, through‑hardened and manganese‑phosphated, and meet the ASME B18.3‑1998 standard.

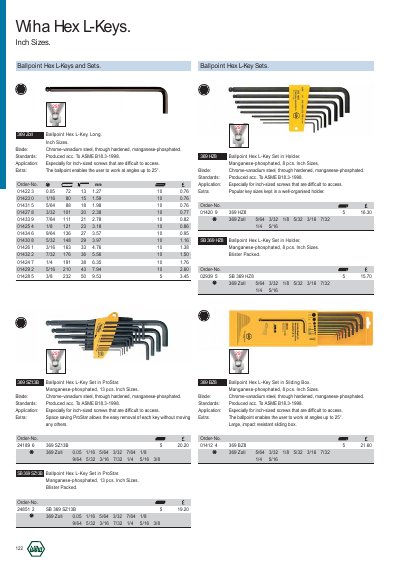

The handbook lists each size, dimensions, and ordering numbers for individual keys and sets, including options such as ProStar, holder, and sliding‑box packaging. It provides quick reference for selecting the correct key size and ordering the appropriate quantity.
| Blade material | Chrome‑vanadium steel, through‑hardened, manganese‑phosphated |
|---|---|
| Standard compliance | ASME B18.3‑1998 |
| Maximum ballpoint working angle | 25° |
| Inch size range | 1/16" to 3/8" |
They are made of chrome‑vanadium steel, through‑hardened and manganese‑phosphated.
They are produced according to ASME B18.3‑1998.
The ballpoint tip can be used at angles up to 25°.
