RHEYFLEX® 500 -Y- is a lead-free cable with flexible cable flexibility and good chemical resistance. It is suitable for dry and moist indoor environments and for measuring, controlling, and regulating purposes. It is suitable for computer units, control equipment on machine tools assembly lines, conveyors, and production lines for controlling, regulating, and monitoring work processes. It is also suitable for industrial plants and production lines that require temporary free movement without periodic recurrence. Cross sections above 10 mm² are used as energy supply cables for fixed installations on machine tools in production lines.
The RHEYFLEX 500 is a flexible, lead‑free power cable designed for indoor and protected outdoor use in industrial applications. It features a bare copper conductor, PVC insulation (type YI 2) and a grey PVC outer sheath (type YM 2) and complies with VDE Reg N° 7691 and RoHS.

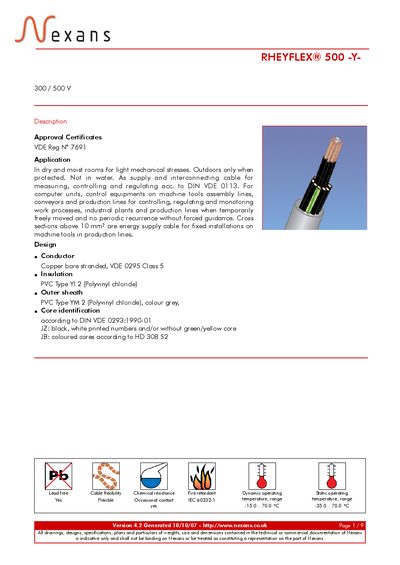

The document lists detailed electrical and mechanical characteristics, including a rated voltage of 300/500 V, a test voltage of 2 kV, dynamic operating temperature from –15 °C to 70 °C, fire‑retardant classification IEC 60332‑1, and a full product list of available conductor sizes and lengths.
| Rated Voltage | 300 / 500 V |
|---|---|
| Test Voltage | 2 kV |
| Conductor Material | Bare copper |
| Insulation | PVC compound type YI 2 |
| Outer Sheath | PVC compound type YM 2 |
| Lead Free | Yes |
| Conductor Flexibility | Flexible class 5 |
| Dynamic Operating Temperature | -15 °C to 70 °C |
| Fire Retardant | IEC 60332‑1 |
| RoHS Conformity | Yes |
The cable is rated for 300 V to 500 V.
Yes, the cable is lead free.
The test voltage is 2 kV.
It is approved under VDE Reg N° 7691 and is RoHS compliant.
