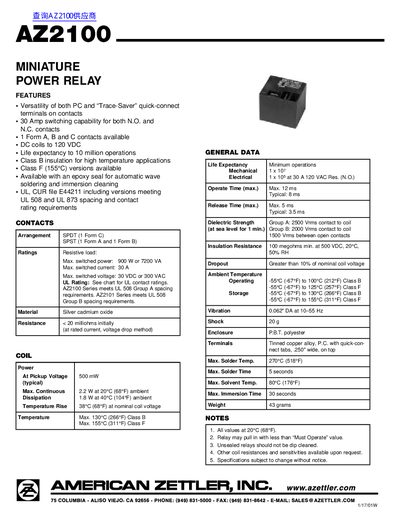

AZ2100 1/17/01W is a relay produced by ON Semiconductor. It has a switching capacity of 30 amps and can be used in high temperature environments. It has a lifespan of 10 million operations.
The AZ2100 miniature power relay provides up to 30 A switching capability for both normally‑open (N.O.) and normally‑closed (N.C.) contacts, with options for Form A, B, and C configurations. It offers a life expectancy of 10 million operations and is available in Class B (up to 125 °C) and Class F (up to 155 °C) insulation versions, including an epoxy‑sealed variant for wave soldering.
Technical data include dielectric strength of 2500 Vrms (Group A), coil power at pickup of 500 mW, maximum continuous coil power of 2.2 W at 20 °C, and contact ratings of up to 900 W (resistive) or 7200 VA (inductive). The relay complies with UL 508 Group A and Group B spacing requirements and is listed in UL/CUR File E44211.
| Maximum switching current | 30 A |
|---|---|
| Maximum switching voltage | 30 VDC or 300 VAC |
| Contact power rating | 900 W (resistive) / 7200 VA (inductive) |
| Coil power at pickup | 500 mW (typical) |
| Maximum continuous coil power | 2.2 W at 20 °C ambient |
| Dielectric strength (Group A) | 2500 Vrms |
| Life expectancy | 10 million operations |
The AZ2100 relay is rated for a life expectancy of 10 million operations.
The AZ2100 series meets UL 508 Group A spacing requirements, while the AZ2101 series meets Group B.
The coil power at pickup voltage is typically 500 mW.
