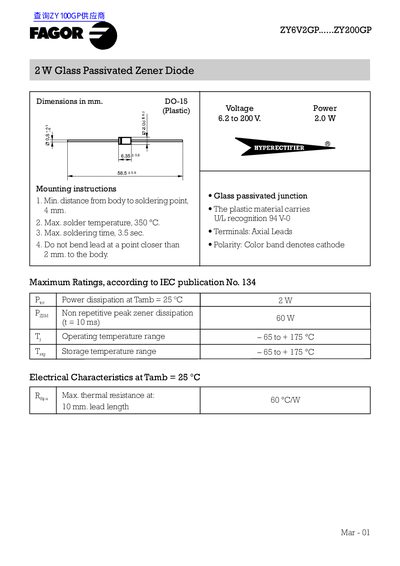

This document provides mounting instructions and maximum ratings for ZY6V2GP..ZY200GP 2 W glass passivated zener diodes. It features a glass passivated junction, plastic material, maximum power dissipation of 2.0 W, and operating temperature range of -65 to +175°C.
This document describes the ZY series 2 W glass‑passivated Zener diodes, covering mounting guidelines, mechanical dimensions, and environmental limits. It includes detailed electrical parameters such as voltage range, Zener impedance, and temperature coefficients for each model in the series.
The datasheet also presents characteristic curves for power dissipation, thermal resistance, and breakdown behavior, helping designers select the appropriate diode based on voltage, current, and temperature requirements.
| Power dissipation | 2.0 W |
|---|---|
| Maximum solder temperature | 350 °C |
| Maximum soldering time | 3.5 s |
| Minimum distance from body to soldering point | 4 mm |
| Voltage range (ZY6V2GP) | 5.8‑6.6 V |
The maximum soldering time is 3.5 seconds.
The minimum distance should be 4 mm.
The diodes are rated for a maximum power dissipation of 2 W.
