This product is designed for Erbium-Doped Fiber Amplifier (EDFA) applications. It features high output power and stable wavelength and power.

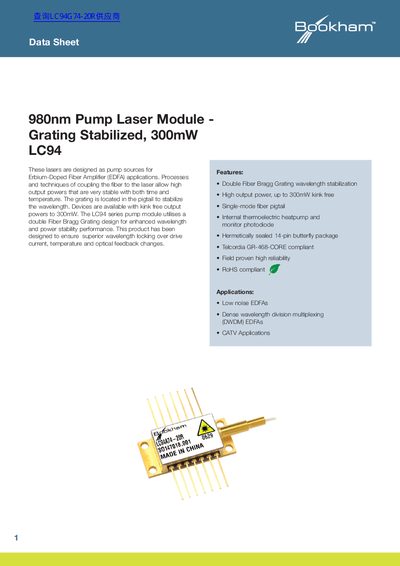

The LC94 series is a 980 nm pump laser module designed for EDFA applications. It offers high output power up to 300 mW, double Fiber Bragg Grating wavelength stabilization, and a hermetically sealed 14‑pin butterfly package. The module includes an internal thermoelectric heat pump, monitor photodiode, and is RoHS compliant.
The data sheet lists electrical and optical characteristics, absolute maximum ratings, package dimensions, pin connections, and ordering part numbers for various output power levels. Contact information for Bookham sales offices worldwide is also provided.
| Maximum output power | 300 mW |
|---|---|
| Center wavelength | 974 nm |
| Threshold current (typ) | 40 mA |
| Forward voltage (typ) | 2.5 V |
| Spectral width (RMS @ -13 dB) | 0.2 nm |
| Operating temperature range (case) | -20 °C to +75 °C |
The LC94 can deliver up to 300 mW of output power.
The laser operates at a center wavelength of 974 nm.
The case temperature can be between –20 °C and +75 °C.
Yes, the LC94 series is RoHS compliant as stated in the data sheet.
