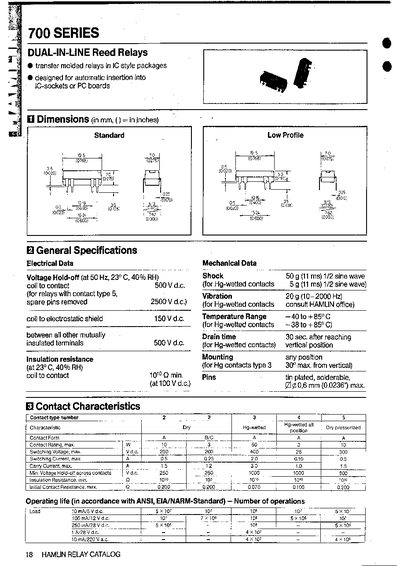

This handbook describes the 700 Series dual‑in‑line reed relays offered by Hamlin. It includes general specifications, electrical and mechanical data, contact characteristics, and ordering information.
Key data such as voltage hold‑off, insulation resistance, temperature range, shock and vibration ratings, as well as detailed coil characteristics for each part number are presented in tables for quick reference.
| Insulation Resistance (23 °C, 40 % RH) | 10^10 Ω |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Shock Rating | 50 g (11 ms) 1/2 sine wave |
| Vibration Rating | 20 g (10‑2000 Hz) |
| Contact Rating (max.) | 10 W |
| Switching Voltage (max.) | 200 V dc |
The relays are rated for operation from –40 °C up to +85 °C.
The minimum insulation resistance is 10^10 Ω under those conditions.
