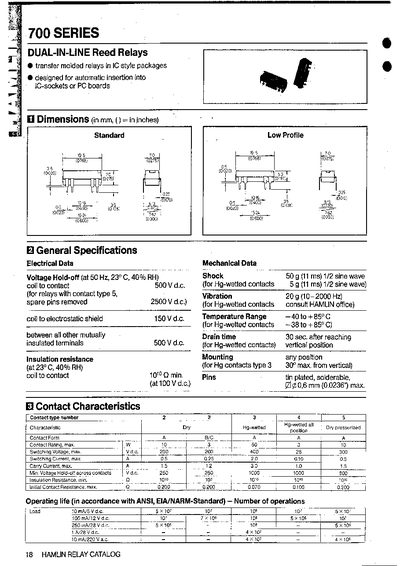

The 700 Series dual‑in‑line reed relays are designed for automatic insertion into IC sockets or printed‑circuit boards. They are offered in standard and low‑profile packages with dimensions listed in millimetres and inches, and feature tin‑plated, solderable pins.
The series includes detailed electrical data such as a 500 V dc voltage hold‑off, shock resistance of 50 g (11 ms), vibration resistance of 20 g (10‑2000 Hz), and an operating temperature range of –40 °C to +85 °C. Various contact types (dry, Hg‑wetted, pressurized) are specified with their switching voltage, current, and rating limits, and coil characteristics are provided for each part number.
| Shock Resistance | 50 g (11 ms) 1/2 sine wave |
|---|---|
| Vibration Resistance | 20 g (10‑2000 Hz) |
| Operating Temperature Range | –40 °C to +85 °C |
| Contact Rating (max.) | 10 W |
| Switching Voltage (max.) | 200 V dc |
They operate from –40 °C up to +85 °C.
They can withstand a shock of 50 g (11 ms) and vibration of 20 g over 10‑2000 Hz.
