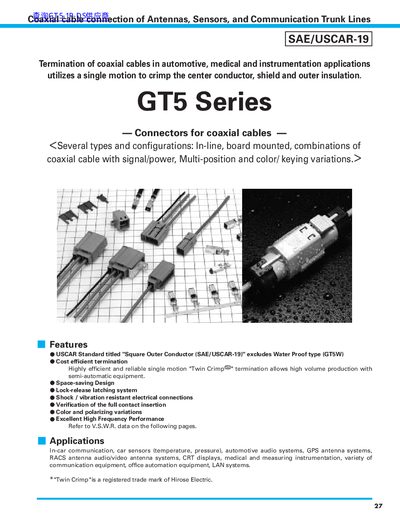

GT5 Series is a connector for coaxial cables, which has various types and configurations: in-line, board mounted, combinations of coaxial cable with signal/power, Multi-position and color/keying variations.
The GT5 Series offers a range of coaxial cable connectors designed for automotive, medical, and instrumentation use. All connectors use a single‑motion "Twin Crimp®" termination that provides reliable, high‑frequency performance while supporting high‑volume production.
The document lists part numbers, keying configurations, housing colors, material finishes, and recommended mounting hardware. It also includes test data, panel cut‑out dimensions, and specifications for an automatic crimping machine used with the connectors.
| Insulator Material | PBT (dark gray) |
|---|---|
| Material Finish (outer terminals) | Brass Tin plating |
| Crimping Method | Twin Crimp® single‑motion termination |
The GT5 series follows the SAE/USCAR‑19 standard titled "Square Outer Conductor".
GT5 connectors use a single‑motion "Twin Crimp®" termination that allows high‑volume production.
Use M3 screws with a nominal diameter of 3.0 mm for a panel thickness of 1.6 mm.
