PGC36DAAN-M is a connector manufactured by Sullins Electronics. It has 2.54mm pitch and 0.100mm contact centers. It has 01 to 36 positions and can be used individually or in pairs.

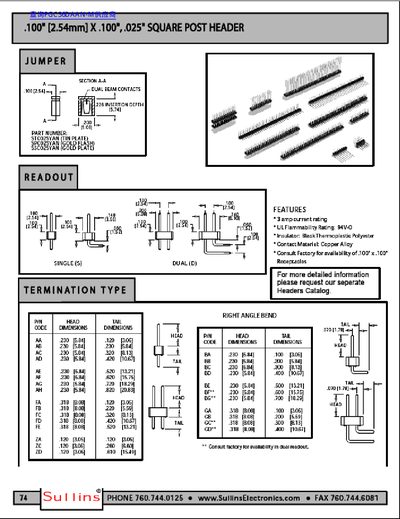

![SULLINS 100*[2.54mm] X 100* 025* SQUARE POST HEADER - cover page](/uploads/covers/7a/7a18d44986d78754a032ca8b1f2ff667.jpg)
The Sullins Square Post Header is a 0.100 in (2.54 mm) pitch connector with a 0.025 in (0.64 mm) square post. It is offered in single‑ or dual‑row configurations and supports various contact finishes.
The sheet lists part numbers, insertion depth, insulator material, and contact material, and explains how to build a full part number using readout and termination codes. For additional details, users can request the separate termination‑type catalog from Sullins.
| Pitch | 0.100 in (2.54 mm) |
|---|---|
| Post size | 0.025 in (0.64 mm) square |
| Contact material | Copper Alloy |
| Insulator material | Black Thermoplastic Polyester |
| Insertion depth | 5.74 mm |
The part number combines the series code, number of positions, readout code, and termination type (e.g., PZC36DAAN).
A dual‑row header doubles the contacts; for example, a 32‑position dual header has 64 contacts.
