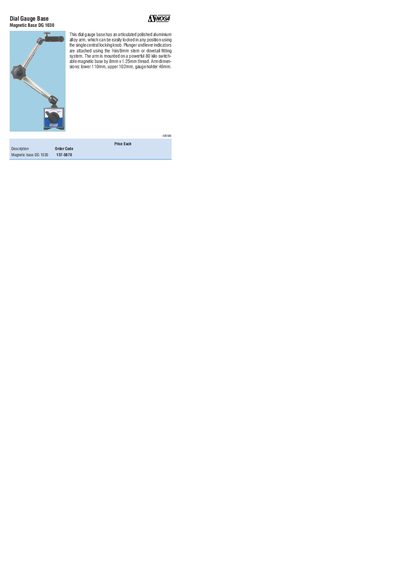

This document describes a magnetic base and dial gauge base with an articulated polished aluminium alloy arm and a central locking knob. Plunger and lever indicators can be attached using the 3/8in/8mm stem or dovetail fitting system. The arm is mounted on a powerful magnetic base with an 8mm x 1.25mm thread. The dimensions of the arm are: lower 110mm, upper 102mm, gauge holder 46mm.
The NOGA DG 1030 dial gauge base provides an articulated polished aluminium alloy arm that can be locked in any position with a central knob. The arm attaches to the gauge holder via a 1/8" (8 mm) stem or dovetail fitting, and is mounted on a strong 80 kg switch‑able magnetic base with an 8 mm × 1.25 mm thread.
Ordering information includes the order code 137‑5870 and price per unit. The product is identified as Magnetic Base DG 1030 in the catalogue.
| Lower arm dimension | 110 mm |
|---|---|
| Upper arm dimension | 102 mm |
| Gauge holder dimension | 46 mm |
| Magnetic base holding capacity | 80 kg |
| Thread size | 8 mm × 1.25 mm |
The magnetic base can hold up to 80 kg.
The lower part of the arm is 110 mm, the upper part is 102 mm, and the gauge holder is 46 mm.
The mounting thread is 8 mm × 1.25 mm.
