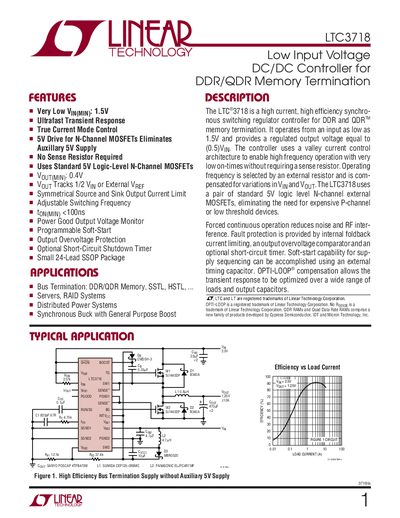

The LTC3718 is a 1.5V input voltage, synchronous buck/boost controller, for DDR/QDR memory termination. It features low input voltage, fast transient response, high efficiency, true current mode control and more.
The LTC3718 is a high‑current, high‑efficiency synchronous switching regulator controller designed for DDR and QDR memory termination. It operates from a low input voltage as low as 1.5 V and provides a regulated output that tracks ½ Vin or an external reference.
The device uses standard 5 V logic‑level N‑channel MOSFETs, eliminating the need for a sense resistor, and includes features such as programmable soft‑start, output over‑voltage protection, and optional short‑circuit shutdown timer. It is supplied in a 24‑lead SSOP package and is suitable for bus termination, server power, and distributed power systems.
| Minimum Input Voltage | 1.5 V |
|---|---|
| Output Voltage Tracking | Vout = ½ Vin or external Vper |
| Package | 24‑Lead SSOP |
| Maximum Output Current | 10 A |
| Operating Temperature Range | -40 °C to 85 °C |
| Shutdown Supply Current | 30 pA |
The LTC3718 can operate with an input voltage as low as 1.5 V.
It is supplied in a 24‑lead SSOP package.
The controller can deliver up to 10 A of output current.
No, the device operates without a sense resistor.
