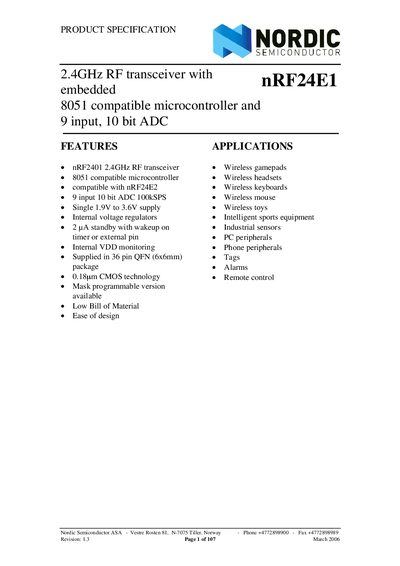

This document describes a product with a 2.4GHz RF transceiver, 8051 compatible microcontroller, and 9 input 10-bit ADC. It supports applications such as wireless gamepads, wireless headsets, wireless keyboards, wireless mice, intelligent sports equipment, industrial sensors, PC peripherals, phone peripherals, tags, alarms, and remote control.
The nRF24E1 is a 2.4 GHz RF transceiver that integrates an 8051‑compatible microcontroller and a 9‑input, 10‑bit ADC. It operates from a single supply (1.9 V‑3.6 V) and supports proprietary modes such as ShockBurst™ and DuoCeiver™ for wireless gamepads, headsets, keyboards, mice, toys, sensors and other peripherals.
This handbook contains a general description, architectural overview, pin‑out diagrams, electrical specifications, power‑saving modes, and application examples. It also includes quick reference data, block diagrams, glossary of terms, and detailed information on the ADC, PWM, interrupts, watchdog, and RF performance.
| Supply voltage range | 1.9 V to 3.6 V |
|---|---|
| Minimum supply voltage | 1.9 V |
| Maximum RF output power | 0 dBm |
| Maximum RF burst data rate | 1000 kbps |
| Supply current (microcontroller @16 MHz, 3 V) | 3 mA |
| Supply current (ADC @100 kSPS) | 0.9 mA |
| Supply current (RF transmit @ -5 dBm) | 10.5 mA |
| Supply current (RF receive @ 1000 kbps) | 19 mA |
The device operates from a single supply voltage between 1.9 V and 3.6 V.
The integrated ADC provides nine analog inputs.
The maximum RF output power is 0 dBm.
