Featured Nordic manuals

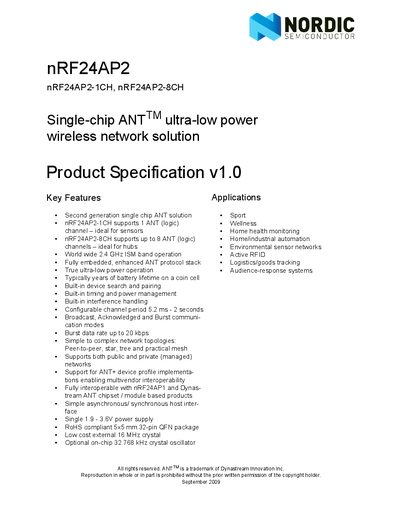

NORDIC nRF24AP2 nRF24AP2-1CH nRF24AP2-8CH Single-chip ANT TM ultra-low power wireless network solution Product Specification v1.0 Manual

Datasheet 59 pages · 893 KB · EN

The nRF24AP2 family from Nordic Semiconductor provides a low‑cost, high‑performance 2.4 GHz ISM‑band transceiver with an integrated ANT protocol stack. Two variants are offered: the nRF24AP2‑1CH with a single ANT channel for sensor nodes, and the nRF24AP2‑8CH with up to eight channels for hub applications.

Key features include ultra‑low power operation (average 17 µA at 1 Hz broadcast), configurable channel periods, burst data rates up to 20 kbps, and support for both asynchronous and synchronous host interfaces. The device is supplied in a 5 × 5 mm 32‑pin QFN package, operates from 1.9 V to 3.6 V, and complies with RoHS directives.

Covers: Product Overview · RF Transceiver · ANT Overview · Host Interface · On‑chip Oscillators · Electrical Specifications

Latest Nordic manuals

• NORDIC SEMICONDUCTOR Single chip 433/868/915 MHz Transceiver nRF905 handbook

  nRF905 is a single-chip radio transceiver from Nordic Semiconductor ASA. It operates in the 433/868/915MHz ISM band and features ShockBurstTM mode, multi-channel operation, ultra-low power consumption, automatic CRC and preamble generation. It can be widely used in wireless data communication, alarm and security systems, home automation, remote control, surveillance, automotive, telemetry, industrial sensors, keyless entry and toys.

• NORDIC SEMICONDUCTOR nRF9E5 433/868/915MHz RF Transceiver with Embedded 8051 Compatible Microcontroller 4 Input 10 Bit ADC

  The nRF9E5 is a truly integrated RF transceiver, 8051 compatible microcontroller and a 4 input 10bit 80ksps AD converter.

• NORDIC SEMICONDUCTOR nRF24E2 2.4GHz RF transmitter with embedded 8051 compatible microcontroller 9 input 10 bit ADC

  nRF24E2 is a 2.4GHz RF transmitter from Nordic Semiconductor with an integrated 8051 compatible microcontroller and 9 input, 10 bit ADC.

• NORDIC SEMICONDUCTOR nRF24E1 2.4GHz RF transceiver with embedded 8051 compatible microcontroller 9 input 10 bit ADC handbook

  This document describes a product with a 2.4GHz RF transceiver, 8051 compatible microcontroller, and 9 input 10-bit ADC. It supports applications such as wireless gamepads, wireless headsets, wireless keyboards, wireless mice, intelligent sports equipment, industrial sensors, PC peripherals, phone peripherals, tags, alarms, and remote control.

• NORDIC SEMICONDUCTOR nRF2401 Single chip 2.4 GHz Transceiver

  nRF2401 is a single-chip 2.4 GHz transceiver for the worldwide 2.4 - 2.5 GHz ISM band. It features a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator and a modulator. Output power and frequency channels are easily programmable by use of the 3-wire serial interface. Current consumption is very low, only 10.5mA at an output power of -5dBm.

• NORDIC nRF24Z12.4GHz wireless audio streamer

  nRF24Z1 is a single chip 2.4GHz RF transceiver supporting MP3/Mini Disk headset, CD quality headset, surround speakers, microphone, musical instruments etc audio applications.

• NORDIC nRF401 433MHz Single Chip RF Transceiver handbook

  Nordic nRF401 is a single chip UHF transceiver designed to operate in the 433MHz ISM (Industrial, Scientific and Medical) frequency band. It features Frequency Shift Keying (FSK) modulation and demodulation capability. nRF401 operates at bit rates up to 20kbit/s. Transmit power can be adjusted to a maximum of 10dBm. Antenna interface is differential and suited for low cost PCB antennas. nRF401 features a standby mode which makes power saving easy and efficient. nRF401 operates from a single +3-5V DC supply. As a primary application, nRF401 is intended for UHF radio equipment in compliance with the European Telecommunication Standard Institute (ETSI) specification EN 300 220-1 V1.2.1.

• NORDIC nRF2402 handbook

  nRF2402 is a single-chip 2.4-2.5 GHz radio transmitter with 128 channels frequency hopping, support low power and high power mode, suitable for application such as wireless mouse, keyboard, remote control and car system

• NORDIC SEMICONDUCTOR nRF24L01 Manual

  nRF24L01 is a single-chip 2.4GHz transceiver launched by Nordic Semiconductor. It has ultra-low power consumption, long-distance transmission, multi-channel, etc. It is widely used in wireless mice, keyboards, remote controls and other portable devices.

• NORDIC nRF24AP1 Manual

• NORDIC nRF24AP2 nRF24AP2-1CH nRF24AP2-8CH Single-chip ANT TM ultra-low power wireless network solution Product Specification v1.0 Manual

  Datasheet 59 pages · 893 KB · EN

  The nRF24AP2 product specification details features, electrical and mechanical specs for the single‑chip ANT ultra‑low‑power 2.4 GHz transceiver.
