The Solid State Sensors SS400 Series digital position sensors have features such as a 3.8-30 VDC supply voltage, digital current sinking output, 3 pin in-line PCB terminals, and a quad-Hall design that virtually eliminates mechanical stress effects. They also have temperature compensated magnetics and customizable operate/release points. The sensors support bipolar, unipolar, and latching magnetics. They have a high output current capability of up to -50 mA and operate/release points symmetrically around zero gauss (bipolar/latch). The operating temperature range is -40 to +150°C (-40 to +302°F). The package material is Plaskon 3300H. A surface mount version is also available: SS400-S (with cut and formed leads).
The SS400 series digital position sensors from Solid State Sensors provide thermally balanced integrated circuits with a wide operating temperature range of –40 °C to +150 °C. They support bipolar, unipolar and latching magnetics and offer high output‑current capability up to 50 mA.

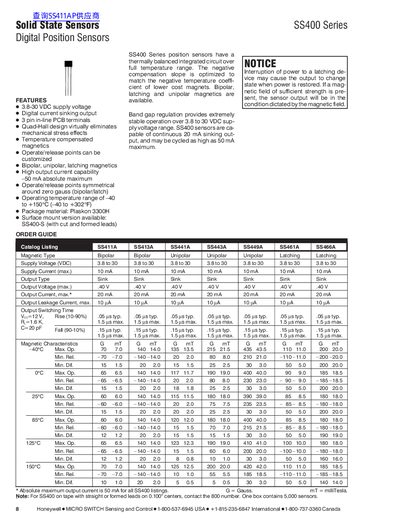

The datasheet includes an order guide, operating and release point curves, mounting dimensions, and tape style options for surface‑mount and leaded versions. Contact information for Honeywell Micro Switch is provided for further support.
| Supply Voltage | 3.8 to 30 VDC |
|---|---|
| Maximum Output Current | 50 mA (absolute max) |
| Operating Temperature Range | -40 °C to +150 °C |
| Package Material | Plaskon 3300H |
| Surface‑Mount Version | S400‑S (with cut and formed leads) |
The absolute maximum output current is 50 mA for all SS400 listings.
They operate from 3.8 VDC up to 30 VDC.
One box contains 5,000 sensors.
